3. TOOLKIT DEMONSTRATION

Maximum Entropy Method

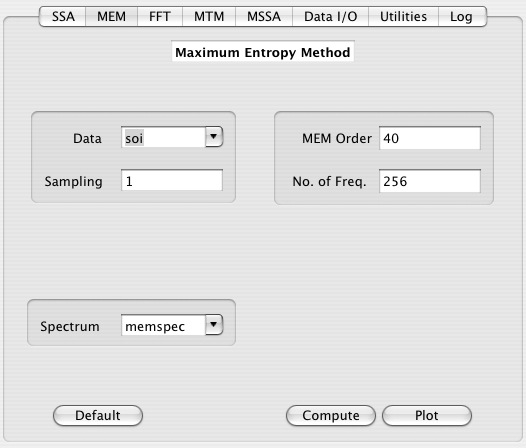

Selecting `Maximum Entropy' from the Analysis Tools menu on the main panel launches the following window (shows its state after pressing the Default button, see below):

Maximum Entropy Method

Here the user needs to specify the data vector to be analyzed, the units of sampling interval dt, the Maximum Entropy Order , along with the number of sample frequencies to be plotted and the name of the output matrix with MEM spectra. If results from several MEM runs have been stored in different matrices, the parameters used in a particular Maximum Entropy analysis will be restored in GUI by simply selecting correspondent matrix from a Spectrum pop-up list. Once the data vector has been chosen (here 'soi by default) the Default button allows a default choice of the remaining parameters, which are shown in above figure for our SOI time series. The number of sample frequencies is actually forced by the Toolkit to be equal to a closest value of a power of 2, and the power densities at this number of evenly-spaced frequencies between 0 and 0.5/dt are estimated. If sampling interval is not specified, it is set to unity, i.e. dt=1.

The order of the Maximum Entropy Method is the number of AR components (or poles) to be included in the analysis, and determines the spectral resolution. The number of spurious peaks usually grows with the MEM order. Note that the spectral resolution is independent of the number of sample frequencies. Robustness of results to MEM Order is the simplest test of their validity.

Running the tool using the Compute button at the bottom writes results to the specified internal vector names, which are given here by default. To save the results to a file, one would go to the Data I/O tool.

Finally, the resulting spectrum can be plotted using the Plot button. As in all the tools, the frequencies generated have units of cycles per sampling-interval. The range plotted is from 0 to 0.5 cycles per sampling interval.

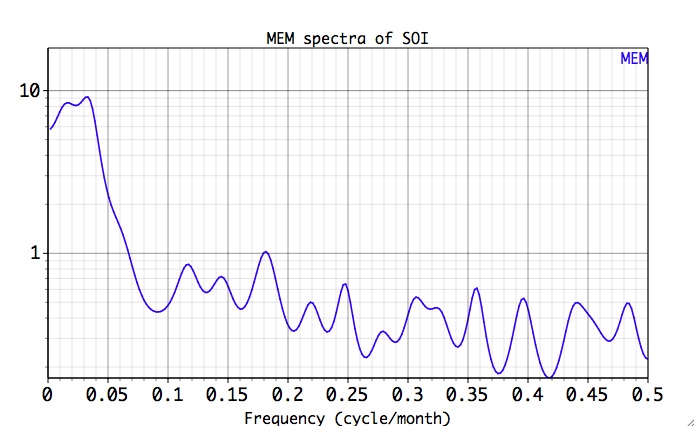

Maximum entropy method spectrum

Like the B-T correlogram, the maximum entropy spectrum for the SOI shows strong peak between 0 and 0.03 cycles/month with hints of two separate peaks. It is also accompanied by a large number of much smaller peaks at higher frequencies, that are spurious.

We can compare the BT Correlogram and MEM spectral estimates on one plot using Utilities tool:

spectral

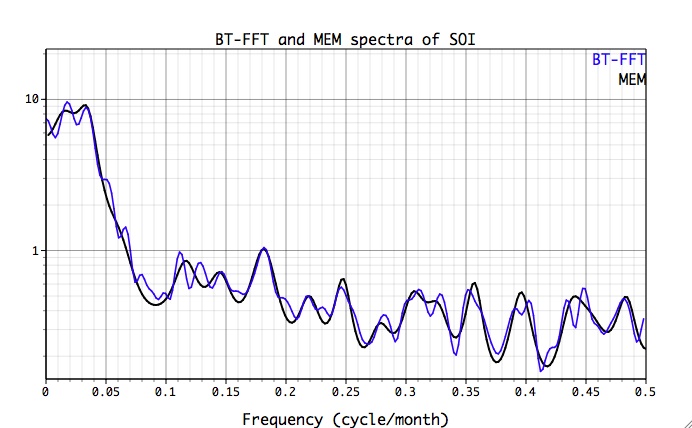

In Compare utility we choose the matrices with the results of corresponding spectral estimates, and click Plot button to obtain the following plot:

maximal entropy spectral estimate

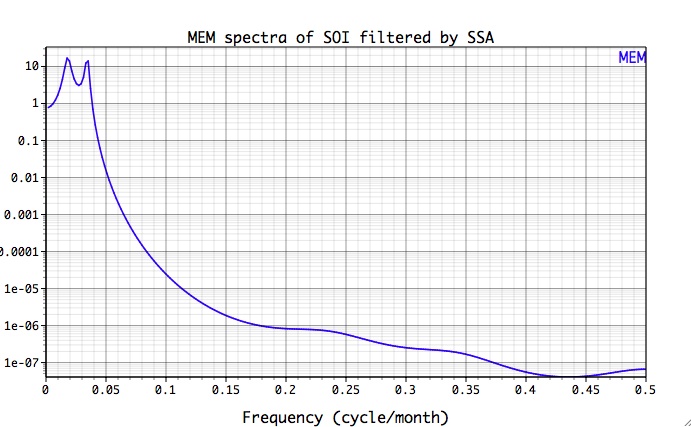

We can use SSA to better separate the El Niño signal from the noise, reconstruct contributions to the original series from the leading oscillatory components (T-EOFS), and then pass resulting RC series through Maximum Entropy analysis. The following result is obtained:

MEM spectra

The regression order M=10 for MEM spectrum of the SSA RC series suffices to separate clearly two distinct peaks at 0.018 and 0.034 cycles/month, which correspond to the QQ and QB components of El Niño. There are now no spurious peaks and the signal-to-noise ratio considerably increased.
